48GB of GDDR6X for memory-intensive local AI workloads, from language-model inference to AI development on your own workstation. A modified GeForce RTX 4090 configuration with active blower cooling and a dual-slot board.
Awaiting delivery. Currently out of stock; arrival date to be confirmed. Not available to order.
Warranty
12-month Percepta return-to-base hardware warranty from delivery for independently modified graphics cards sold as New. Subject to the Hardware Warranty Policy. Your statutory rights are unaffected.
Build your local AI workstation around 48GB of dedicated GDDR6X memory. This modified GeForce RTX 4090 configuration is aimed at running language models, developing local AI applications and experimenting with memory-intensive workloads on your own hardware. Active blower cooling and a dual-slot design support workstation integration; the exact model, settings and software determine what fits.
48GBGDDR6X memory per card
16,384CUDA cores
384-bitMemory interface
38.5mmNominal card thickness
A closer look at the card

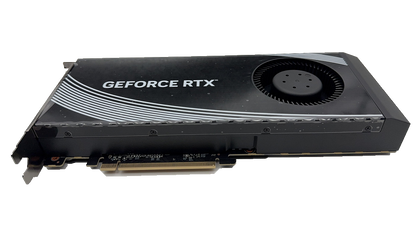

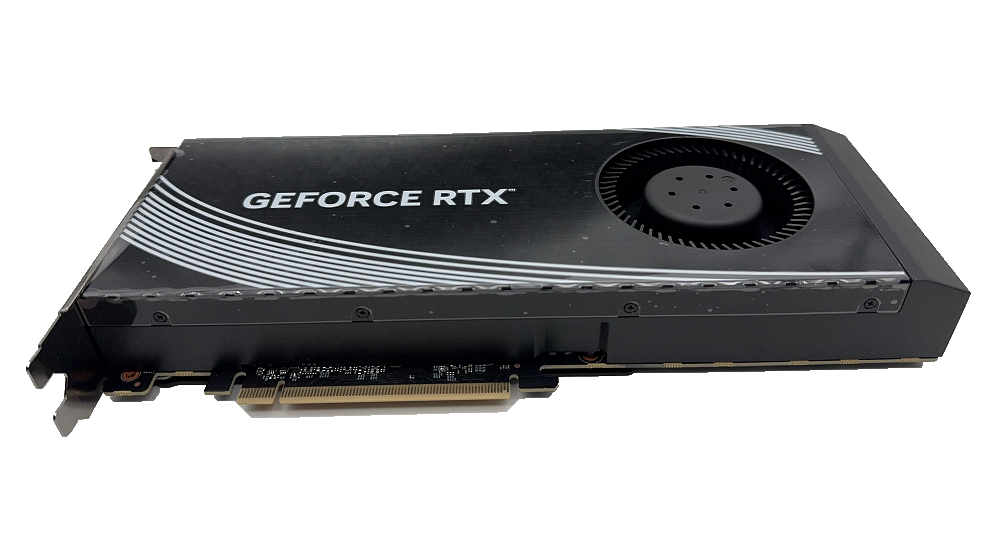

Original card photograph / oblique view
48GB on a single card
Keep more of a local AI workload in GPU memory: model weights, context and runtime working space. The 48GB configuration offers extra capacity for memory-intensive inference, with the exact model, quantisation and settings determining what fits.

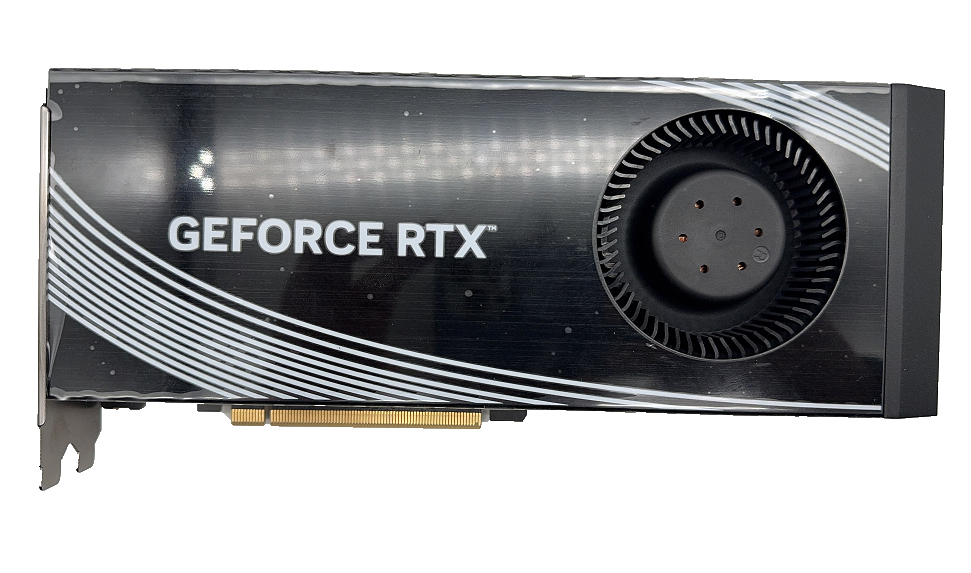

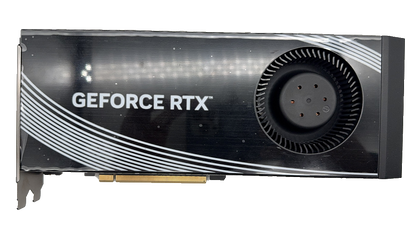

Original card photograph / blower and shroud
Active blower cooling

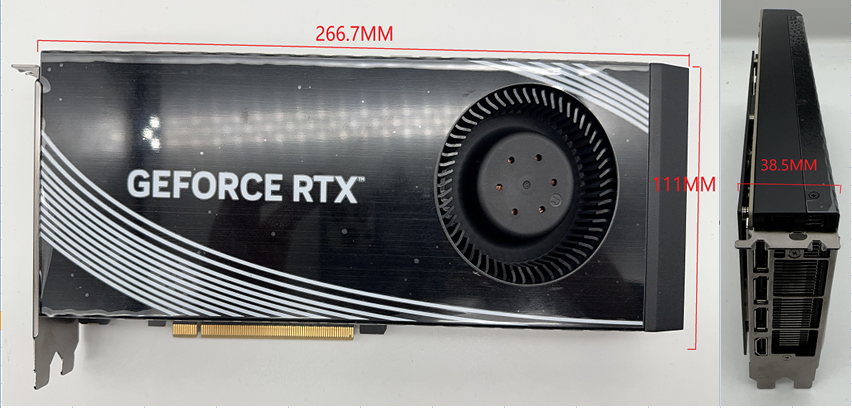

The enclosed shroud and radial fan direct air towards the vented rear bracket. The nominal 266.7mm length and 38.5mm thickness help with planning a workstation installation. Allow clearance for the fan inlet, cabling and adjacent cards.

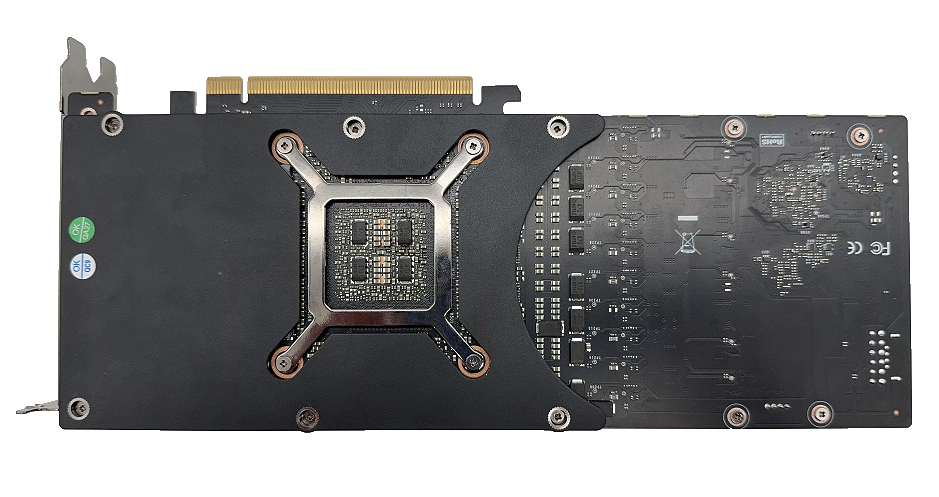

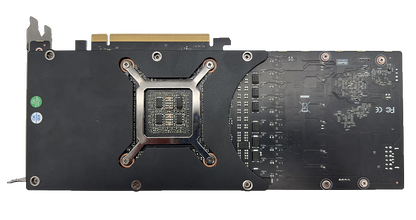

Original card photograph / rear PCB and mounting
PCIe workstation integration
A PCIe 4.0 x16 host interface connects the card to a compatible system. The board provides three DisplayPort 1.4a outputs and one HDMI 2.1 output. Check the complete host configuration, power connection and driver requirements before installation.
Technical specification
Figures below describe the supplier's 48GB configuration. They are not a specification for the standard 24GB retail card.
01 / Graphics processor and memory
GPU
NVIDIA AD102-301-A1 / GeForce RTX 4090-based
Architecture
NVIDIA Ada Lovelace
CUDA cores
16,384
GPU memory
48GB GDDR6X (49,152MB reported in the supplied GPU-Z record)
Memory interface
384-bit
Memory data rate
21Gbps stated
Memory bandwidth
1,008.4GB/s reported in the supplied GPU-Z record
Base / boost clock
2,235MHz / 2,520MHz stated; operating clocks vary with conditions
02 / Interface, cooling and physical layout
Host interface
PCIe 4.0 x16
Display connections
3 x DisplayPort 1.4a; 1 x HDMI 2.1
Cooling
Active radial blower with vented rear bracket
Stated TDP
450W; not a measurement of complete-system consumption
Nominal dimensions
266.7 x 111 x 38.5mm (length x height x thickness)
Form factor
Full-height, dual-slot
PCB
14 layers, matt-black finish
Software interfaces listed
CUDA, DirectX 12 Ultimate, OpenGL 4.6 and Vulkan; validate your required driver and application combination
Based on supplier specification BP49K-EA46B and the accompanying hardware record. Exact power-connector requirements, supplied accessories and compatibility with a particular host must be confirmed before ordering. Supplier test results are reference evidence, not a performance guarantee for your system.
This listing
Card, not a complete system
One GeForce RTX 4090-based 48GB blower graphics card is the proposed configuration.
Packaging, cables, adapters and other accessories are not yet confirmed.
No software licence or complete workstation is represented as included.
Plan your setup
What you'll need
A compatible PCIe host with full-height, dual-slot clearance.
A suitable power supply and the correct GPU power cable, confirmed for this board.
Clear blower intake and exhaust paths, with room for power-cable routing.
A validated operating system, driver and application stack for the modified memory configuration.
Planning your local AI setup
Why choose 48GB for local AI?
VRAM holds the model and the working memory it needs while generating an answer. Compared with a 24GB card, 48GB gives you more room for model weights, longer conversations and larger workloads. The benefit is capacity: twice the memory does not mean twice the speed.
What size language models can I run?
Check the exact model and quantisation, not just its parameter count. Lower-bit versions, such as 4-bit or 8-bit, reduce the space needed for model weights. Leave room for the context cache and runtime overhead too: longer prompts and parallel requests increase memory use. A model file smaller than 48GB is not, by itself, proof that the complete workload will fit.
Can I use Ollama or LM Studio?
These are common starting points for running local language models. Ollama lists the RTX 4090 among its supported NVIDIA GPUs, but that is not validation of this modified 48GB board. Confirm the driver, operating system and chosen runtime for the supplied card before committing to a deployment.
Can my models and documents stay on my own machine?
Yes, with a locally configured AI application. For example, LM Studio supports offline inference after the model and runtime have been downloaded. Use local models and local document processing, and check cloud features, external tools and integrations separately. Owning the GPU alone does not make every application private or offline.
Is this for inference, or can I fine-tune models too?
Local inference is the main focus: running an existing model on your own workstation. Memory-efficient adaptation methods such as LoRA and QLoRA may also be suitable, depending on the model, sequence length, batch size and software. QLoRA uses quantised base weights with trainable adapters; it is different from full-model training. No specific fine-tuning configuration has been validated for this listing.
Would two cards give me 96GB for one model?
Two cards provide 48GB each, not one automatic 96GB memory pool. A compatible inference engine can split a model across GPUs; Ollama documents this approach when a model does not fit on one GPU. Your workstation still needs the PCIe slots, power, cooling and software support for both cards.
Technical documents
RTX 4090 48GB data sheet
Specifications, dimensions and original product photographs.
