Percepta / Workstation GPU
SKU:900-5G195-2200-000
24GB GDDR7 ECC and 432GB/s memory bandwidth on a low-profile, dual-slot 70W graphics card with active cooling and four Mini DisplayPort 2.1b outputs. No auxiliary power cable is required.
Explore the detailsIn stock
Couldn't load pickup availability
Workstation graphics / NVIDIA Blackwell
The NVIDIA RTX PRO 4000 Blackwell SFF Edition brings local AI inference, CAD visualisation and video work to compact workstations and edge systems. Its 24GB of ECC-capable GDDR7 holds models, assemblies and scene data, while four Mini DisplayPort 2.1b outputs support a multi-monitor desk.
This is the low-profile, dual-slot SFF Edition: 6.6 inches long, rated at 70W and installed without an auxiliary power cable.
Fifth-generation Tensor Cores accelerate LLM and generative-AI inference, with FP4 support for compatible quantised models. A 70W rating with no auxiliary power cable suits small desktops and edge systems that run vision or inference workloads close to where data is captured. The 24GB memory budget needs to cover the model, application buffers and, for LLMs, context memory.
Fourth-generation RT cores accelerate ray-traced lighting and reflections for CAD, AEC and product-design visualisation. GDDR7 memory gives large assemblies and scene assets room alongside rendering buffers, and supported applications can use RTX Mega Geometry and neural-rendering features for detailed interactive views.
Two ninth-generation NVENC and two sixth-generation NVDEC engines offload encoding and decoding for editing, transcoding and live streaming. H.264 and HEVC 4:2:2 support helps with professional camera footage, and AV1 encoding provides another delivery option in compatible software.
Specifications for one card
| GPU model | NVIDIA RTX PRO 4000 Blackwell SFF Edition |
|---|---|
| NVIDIA part number | 900-5G195-2200-000 |
| Architecture | NVIDIA Blackwell |
| GPU memory | 24GB GDDR7 with ECC |
| Memory bandwidth | 432GB/s |
| Memory interface | 192-bit |
| CUDA cores | 8,960 |
| Tensor Cores | 280, fifth generation |
| RT cores | 70, fourth generation |
| FP32 single-precision peak | 24 TFLOPS |
| FP4 Tensor peak (with sparsity) | 770 TOPS |
Manufacturer peaks per GPU at GPU Boost clock, not application benchmarks. FP4 uses sparsity; it is not dense throughput. Actual performance depends on the application, model and software support.
| Host interface | PCIe 5.0 x8, on an x16 edge connector |
|---|---|

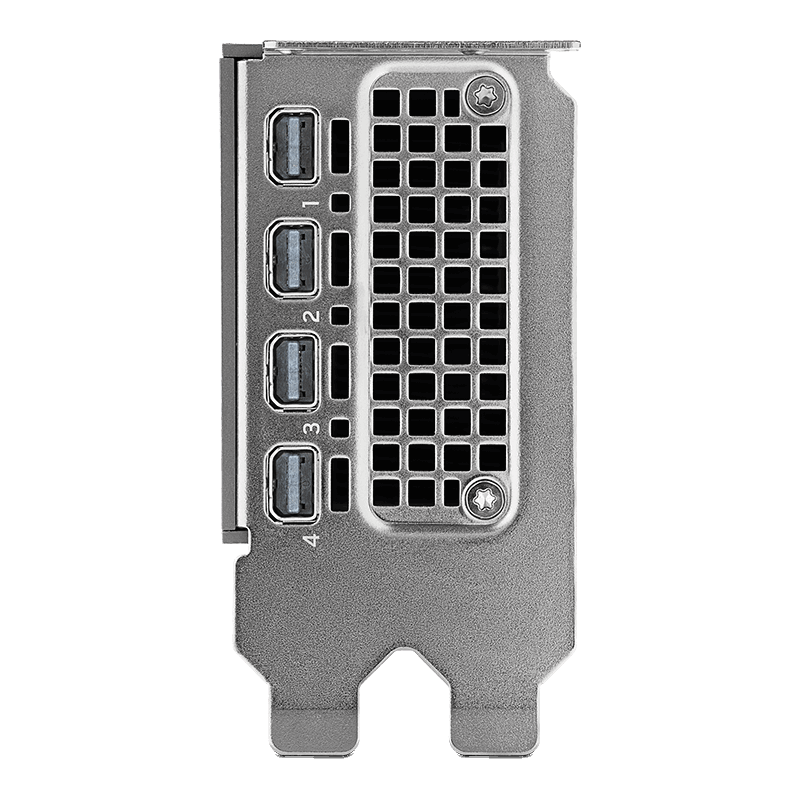

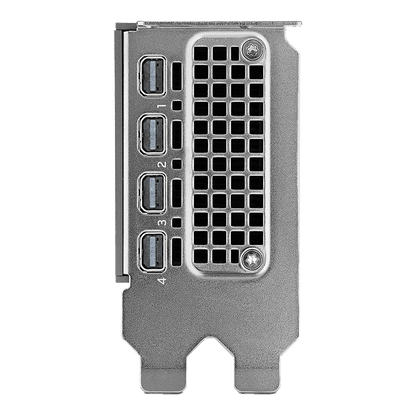

| Physical display outputs | 4x Mini DisplayPort 2.1b |
| Maximum simultaneous displays | Up to 4 at 3840 x 2160, 165Hz; or up to 2 at 7680 x 4320, 100Hz |
| Video engines | 2x ninth-generation NVENC; 2x sixth-generation NVDEC |
| Board power | 70W total board power |
|---|---|
| Auxiliary power input | None |
| Cooling | Active blower fan |
| Form factor | Low profile (half height), dual slot |
| Nominal card dimensions | 2.7 inches high x 6.6 inches long |
Size the PSU for the complete system and allow two-slot clearance and airflow for the active cooler. PCIe link speed and application features depend on the host platform and software.
Included
One NVIDIA RTX PRO 4000 Blackwell SFF Edition 24GB graphics card, part number 900-5G195-2200-000.
Plan display cables or Mini DisplayPort adapters, installation accessories and software licences separately.
Plan your installation
Both have 24GB of GDDR7 with ECC, 8,960 CUDA cores and the same video engines. The SFF Edition is a low-profile, dual-slot card rated at 70W, with 432GB/s memory bandwidth, a PCIe 5.0 x8 interface, four Mini DisplayPort outputs and no auxiliary power connector. The standard card is full-height and single-slot, with 672GB/s bandwidth, PCIe 5.0 x16, four full-size DisplayPort outputs, a higher board-power rating and a 16-pin auxiliary power connection.
Yes. The card is half height, so it suits low-profile systems, and it can be installed in a standard full-height slot when fitted with a full-height (ATX) bracket. It occupies two slot positions in either case.
Check for a physical x16 PCIe slot, two slot positions of clearance and airflow to the blower fan. The card uses eight PCIe 5.0 lanes; link speed depends on the motherboard slot and platform. It is rated at 70W total board power and needs no auxiliary power cable, but size the PSU for the complete system.
Yes. Four Mini DisplayPort 2.1b outputs support up to four 3840 x 2160 displays at 165Hz, or two 7680 x 4320 displays at 100Hz. Displays with full-size DisplayPort inputs need Mini DisplayPort-to-DisplayPort cables or adapters. Available modes depend on the displays, cables and software.
One RTX PRO 4000 Blackwell SFF Edition 24GB graphics card. Plan display cables or adapters, installation accessories and software licences separately.
